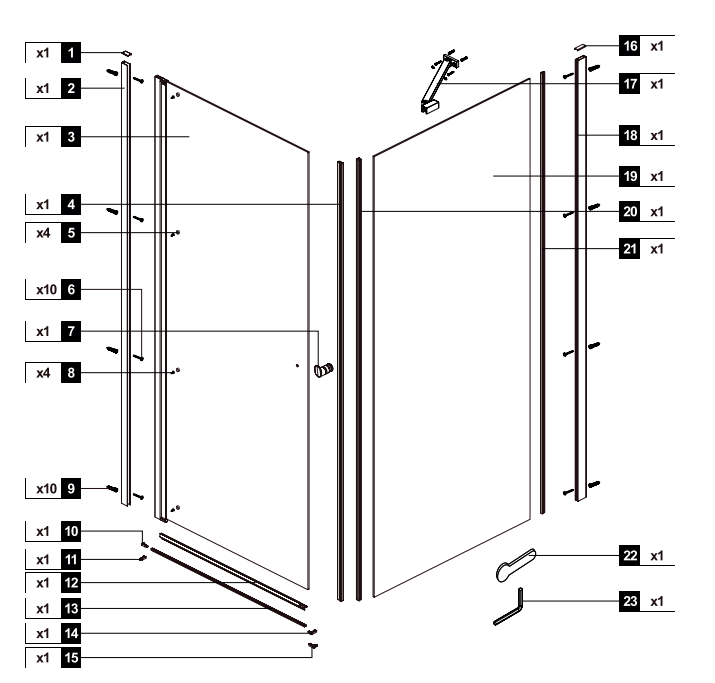

Manufacturer diagram
1–23
⛶
Choose a reference
1 · Door profile top cap
2 · Door wall profile
3 · Preassembled pivot door
4 · Magnetic seal B
5 · Screw caps
6 · ST4 × 40 mm screws
7 · Knob set
8 · ST4 × 10 mm screws
9 · Wall anchors
10 · Threshold connector
11 · Alternative threshold connector
12 · Bottom drip seal
13 · Straight threshold
14 · Threshold end
15 · Alternative threshold end
16 · Side profile top cap
17 · Stabilizer assembly
18 · Side wall channel
19 · Fixed glass panel
20 · Magnetic seal A
21 · Compression gasket
22 · Gasket fitting tool
23 · Allen key
−
Fit
+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
